Reliable mechanical retention for insulation systems

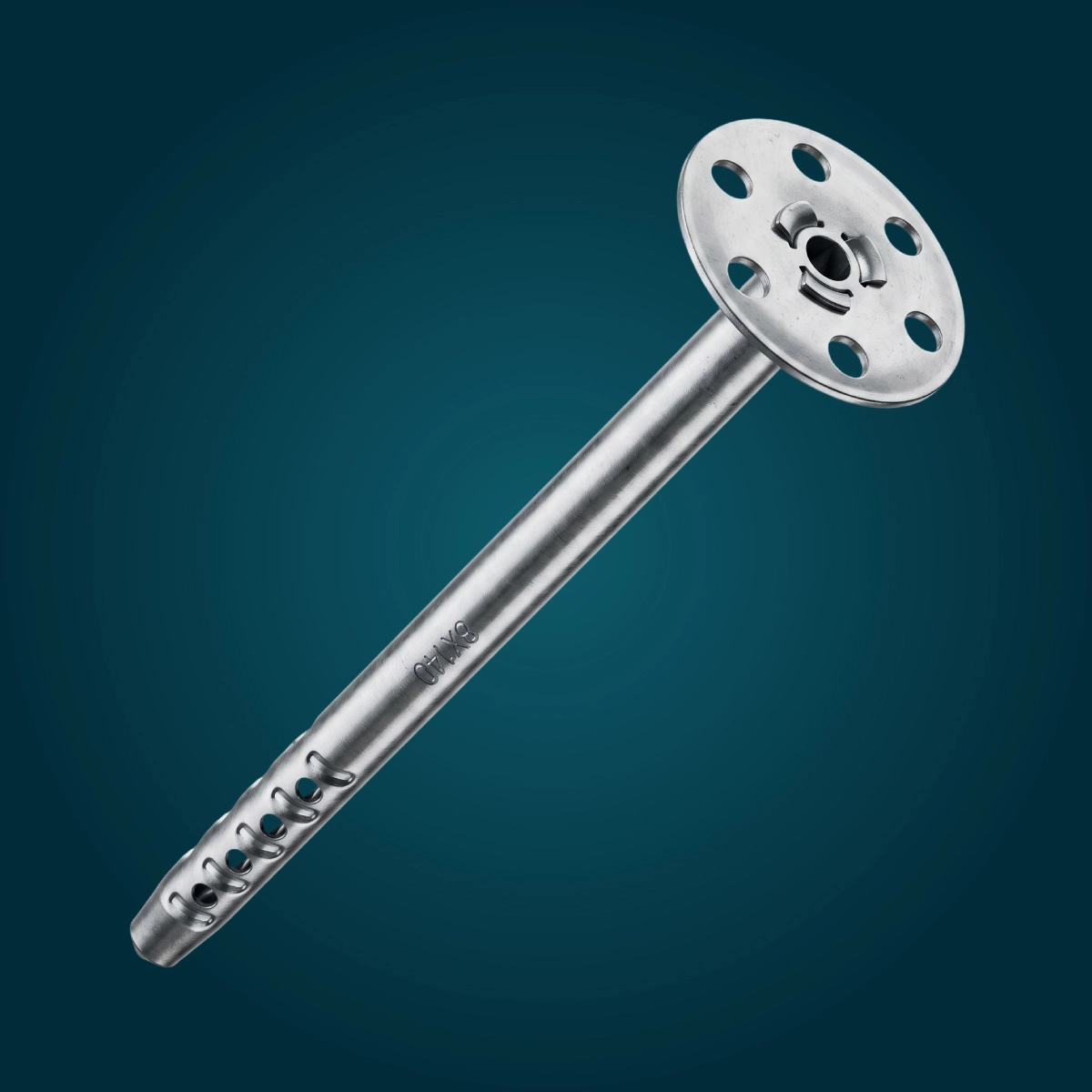

JIN® Metal Insulation Nail
Hammer-driven metal insulation nail for fast and reliable installation of insulation materials to concrete, masonry, and other suitable building substrates.
Civil Work
PRODUCT SYSTEMJIN
STRUCTURED PRODUCT RANGE
Available sizes and article codes
Search the range by article code, dimension or technical value.
| Art. Code | Lengthmm | Head Ømm | Material | Pcs/Box | Enquiry |
|---|---|---|---|---|---|
| JIN080 | 80 | 30 | Steel | 250 | |
| JIN110 | 110 | 30 | Steel | 250 | |
| JIN140 | 140 | 35 | Steel | 250 | |
| JIN170 | 170 | 35 | Steel | 250 | |
| JIN200 | 200 | 35 | Steel | 250 | |
| JIN250 | 250 | 35 | Steel | 250 |
TECHNICAL INFORMATION
Product specifications
General Technical Data
Product TypeInsulation Nail
Installation MethodHammer Driven
MaterialSteel, Stainless Steel
Surface FinishCoated
Nominal Diameter8 mm
Head Diameter30 / 35 mm
Available Lengths80, 110, 140, 170, 200, 250 mm
Drilling Depth – Concrete40 mm
Drilling Depth – Masonry50 mm
Recommended Load – Concrete0.3 kN
Recommended Load – Solid Block0.2 kN
Recommended Load – Hollow Block0.1 kN
Recommended Load – AAC Block0.1 kN
Technical note
Mechanical and installation values must be read together with the relevant documentation, substrate conditions and project design requirements.
