Width
5
Thickness
2
Length
15
Material
Bytule
Packing
500
Brand
Jp
Request quotation
Engineering response within 24h
|
Item Code
|
Width
|
Thickness
|
Length
|
Material
|
Packing
|
|
|
123
|
5
|
2
|
15
|
Bytule
|
500
|
|

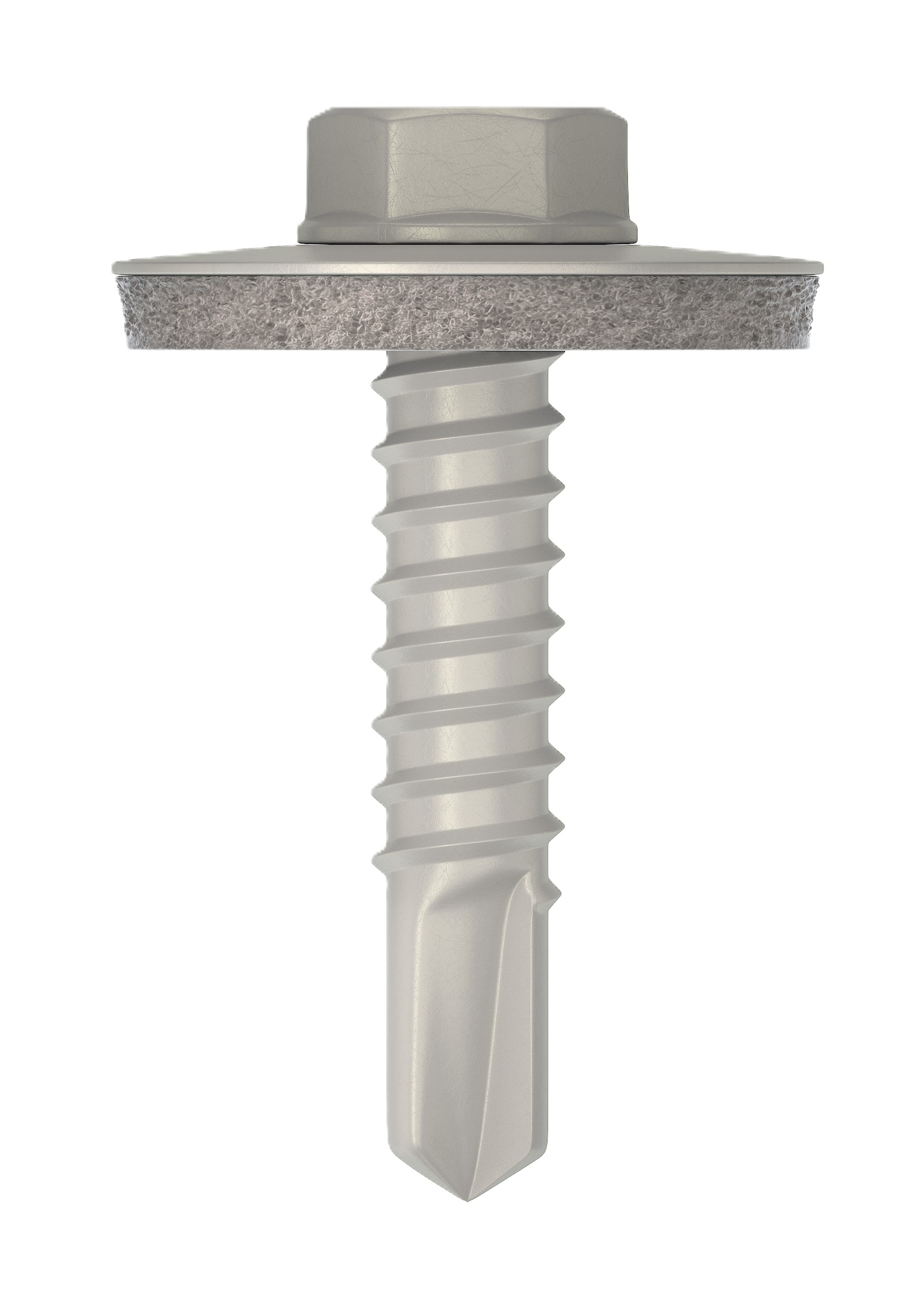

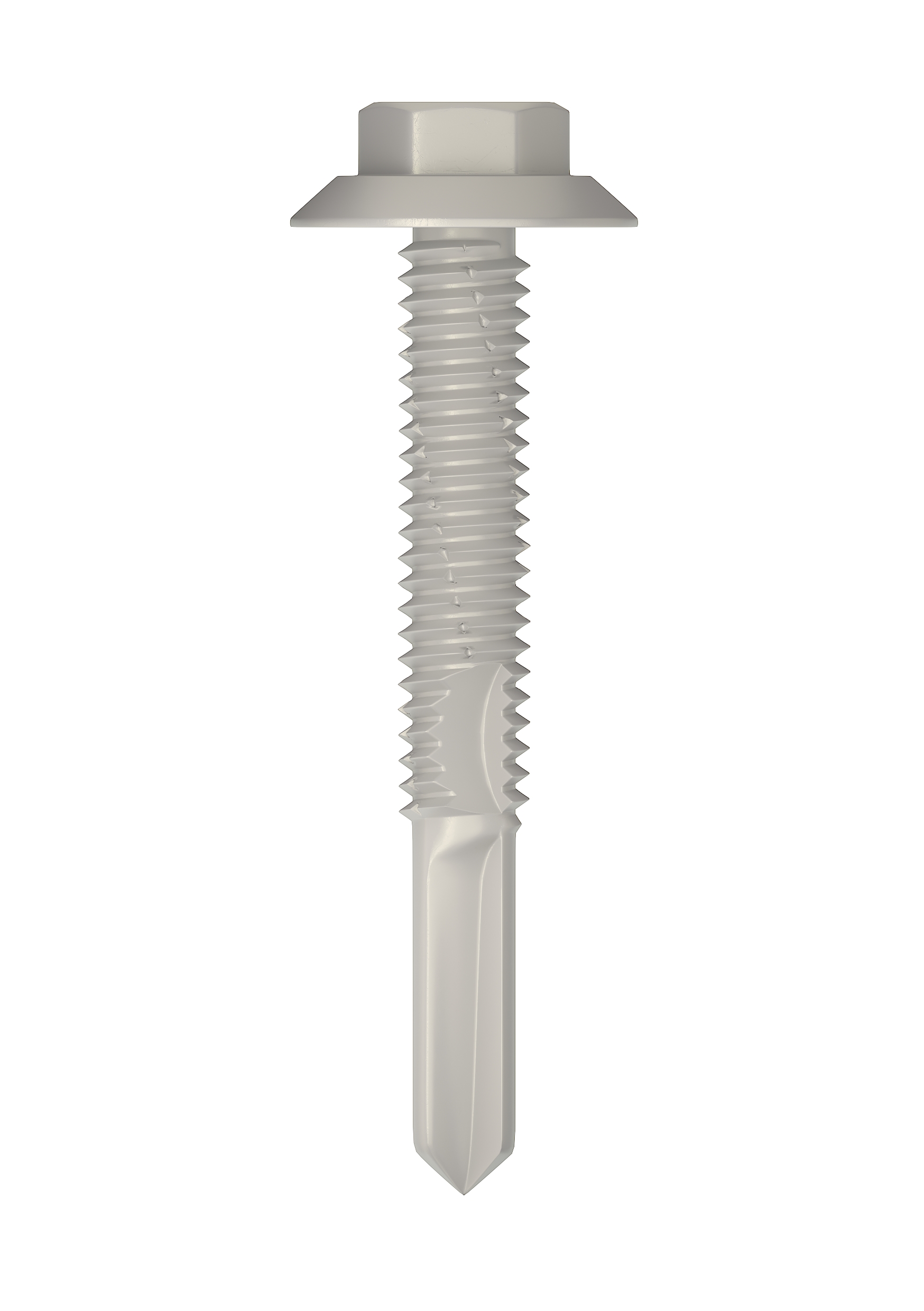

Self Drilling Screw
Carbon Steel
C4 Corrosion
Steel to Steel
Hex Washer Head
Geometry
Diameter
4.8 mm to 6.3 mm
Length
19 mm to 150 mm
Head Type
Hex Washer
Thread Type
Self Drilling
Material and Corrosion
Base Material
C1022 Carbon Steel
Coating
Zinc + Organic Seal
Corrosion Class
Up to C4
Washer
EPDM Bonded
Installation
Drill Capacity
1.2 to 6.0 mm
Recommended Torque
5 - 8 Nm
Drive Type
Hex 8 mm
Installation Speed
High speed drilling
Performance
Pull-out Resistance
2.5 kN
Shear Resistance
3.2 kN
Recommended Load
1.8 kN
Service Life
Outdoor durable
Application
Steel to Steel
Roofing Sheets
Cladding Systems
Light Structures
Notes
Suitable for external applications up to C4 environment.
For marine or aggressive environments, stainless steel A4 is recommended.
