Self-drilling fastener
BIFIX
BIFIX-BM-55-63-3P
Precision drilling and structural fastening

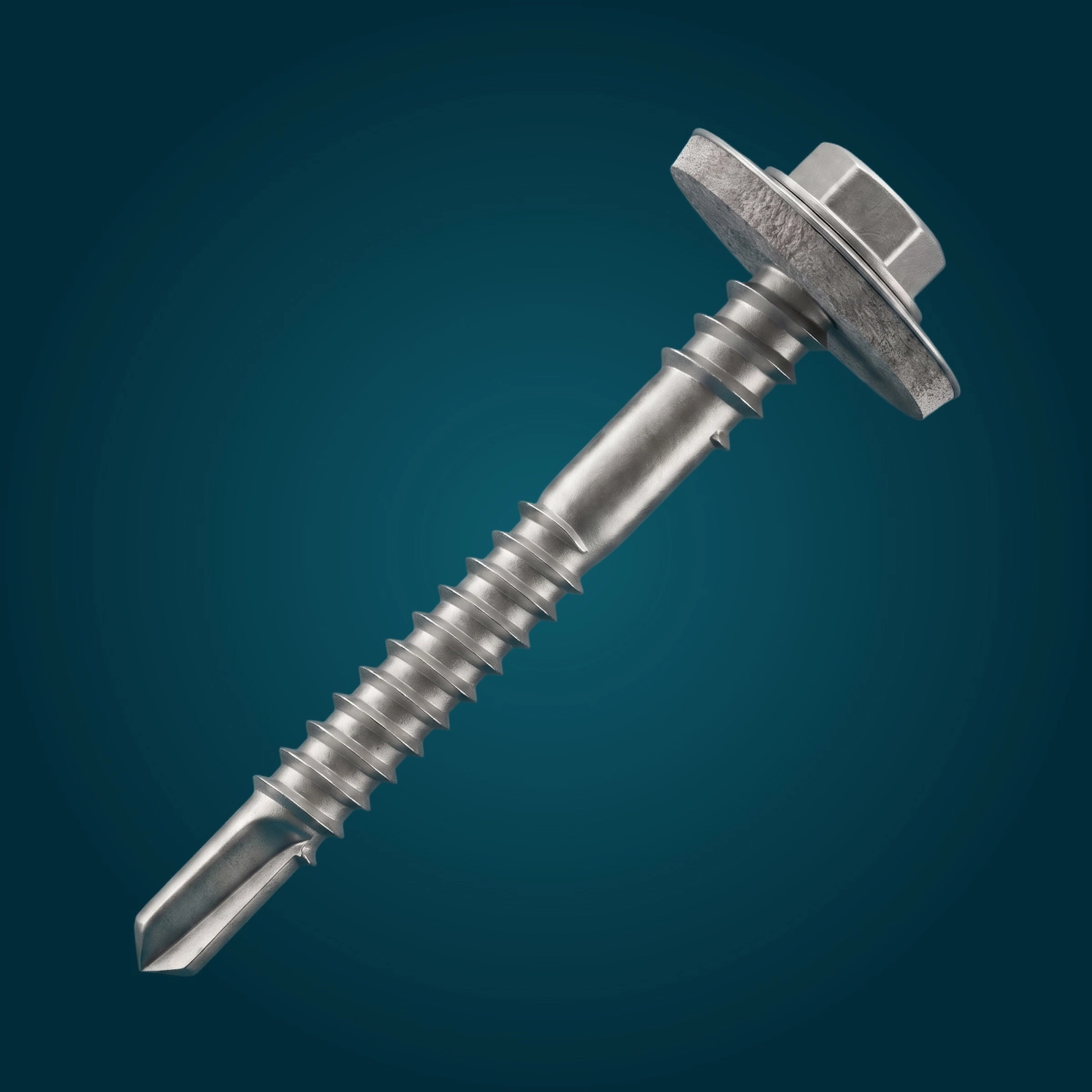

BIFIX® Bi-Metal Stainless Steel 304 5.5XL & 6.3XL 3P UltraZin
Bi-metal self-drilling roofing screw with stainless steel A2 (304) body, hardened carbon steel drill point, hex washer head, and bonded EPDM sealing washer.
RoofingCladdingSandwich panelsSteel structures
PRODUCT SYSTEMBIFIX-BM-55-63-3P
STRUCTURED PRODUCT RANGE
Available sizes and article codes
Search the range by article code, dimension or technical value.
| Art. Code | Diametermm | Lengthmm | Drill Point | Clamping Thicknessmm | Washer Ømm | Pcs/Box | Enquiry |
|---|---|---|---|---|---|---|---|
| 12035502519 | 5.5 | 25 | 3P | 0-8 | 19 | 500 | |
| 12035504019 | 5.5 | 40 | 3P | 0-23 | 19 | 500 | |
| 12035506019 | 5.5 | 60 | 3P | 0-43 | 19 | 500 | |
| 12035508019 | 5.5 | 80 | 3P | 0-63 | 19 | 500 | |
| 12036302519 | 6.3 | 25 | 3P | 0-8 | 19 | 500 | |
| 12036304019 | 6.3 | 40 | 3P | 0-23 | 19 | 500 | |
| 12036306019 | 6.3 | 60 | 3P | 0-43 | 19 | 500 | |
| 12036308019 | 6.3 | 80 | 3P | 0-63 | 19 | 500 |
TECHNICAL INFORMATION
Product specifications
General Technical Data
Product TypeBi-Metal Self-Drilling Roofing Screw
Head TypeHex Washer Head
Drive SizeHex 8 / Hex 10
Washer Diameter19 mm
EPDM Thickness3 mm
Recommended Installation Speed1300–1500 rpm
Tensile Load11.5 / 15.0 kN
Single Shear Load7.5 / 13.0 kN
Torsional Strength9.5 / 13.5 Nm
Technical note
Mechanical and installation values must be read together with the relevant documentation, substrate conditions and project design requirements.
