Self-drilling fastener BIFIX BIFIX-CS-55-5P
Precision drilling and structural fastening

BIFIX® 5.5XL 5P EcoZin

Carbon steel self-drilling decking screw with hex washer head, full thread, and 5P drill point for steel decking, profiled sheets, and steel plates to thick steel substructures.

Explore technical range
RoofingSteel structures
PRODUCT SYSTEMBIFIX-CS-55-5P
BIFIX® 5.5XL 5P EcoZin
STRUCTURED PRODUCT RANGE

Available sizes and article codes

Search the range by article code, dimension or technical value.

Art. CodeDiametermmLengthmmDrill PointClamping ThicknessmmWasher ØmmPcs/BoxEnquiry
10055504000 5.5 40 5P 0-20 Upon request: 19 250
10055505000 5.5 50 5P 0-30 Upon request: 19 250
10055506000 5.5 60 5P 0-40 Upon request: 19 250
10055510000 5.5 100 5P 0-75 Upon request: 19 250
TECHNICAL INFORMATION

Product specifications

General Technical Data

Product TypeCarbon Steel Self-Drilling Decking Screw
Head TypeHex Washer Head
Drive SizeHex 8
Drilling Capacity≤ 12 mm
Recommended Installation Speed1800–2000 rpm
Tensile Load13.3 kN
Single Shear Load8.3 kN
Torsional Strength10.9 Nm
Technical note

Mechanical and installation values must be read together with the relevant documentation, substrate conditions and project design requirements.

RELATED OPTIONS

Continue exploring this product family.

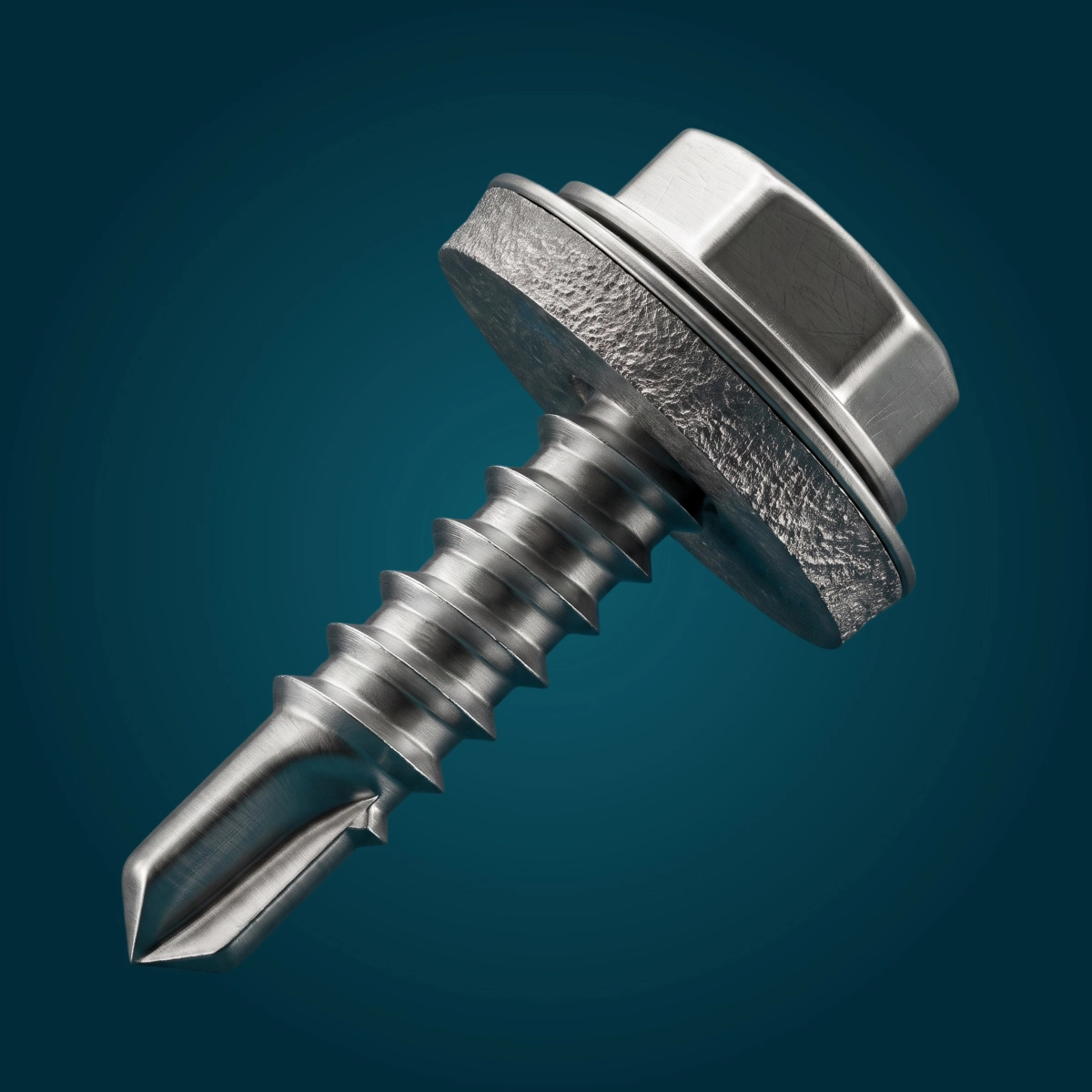

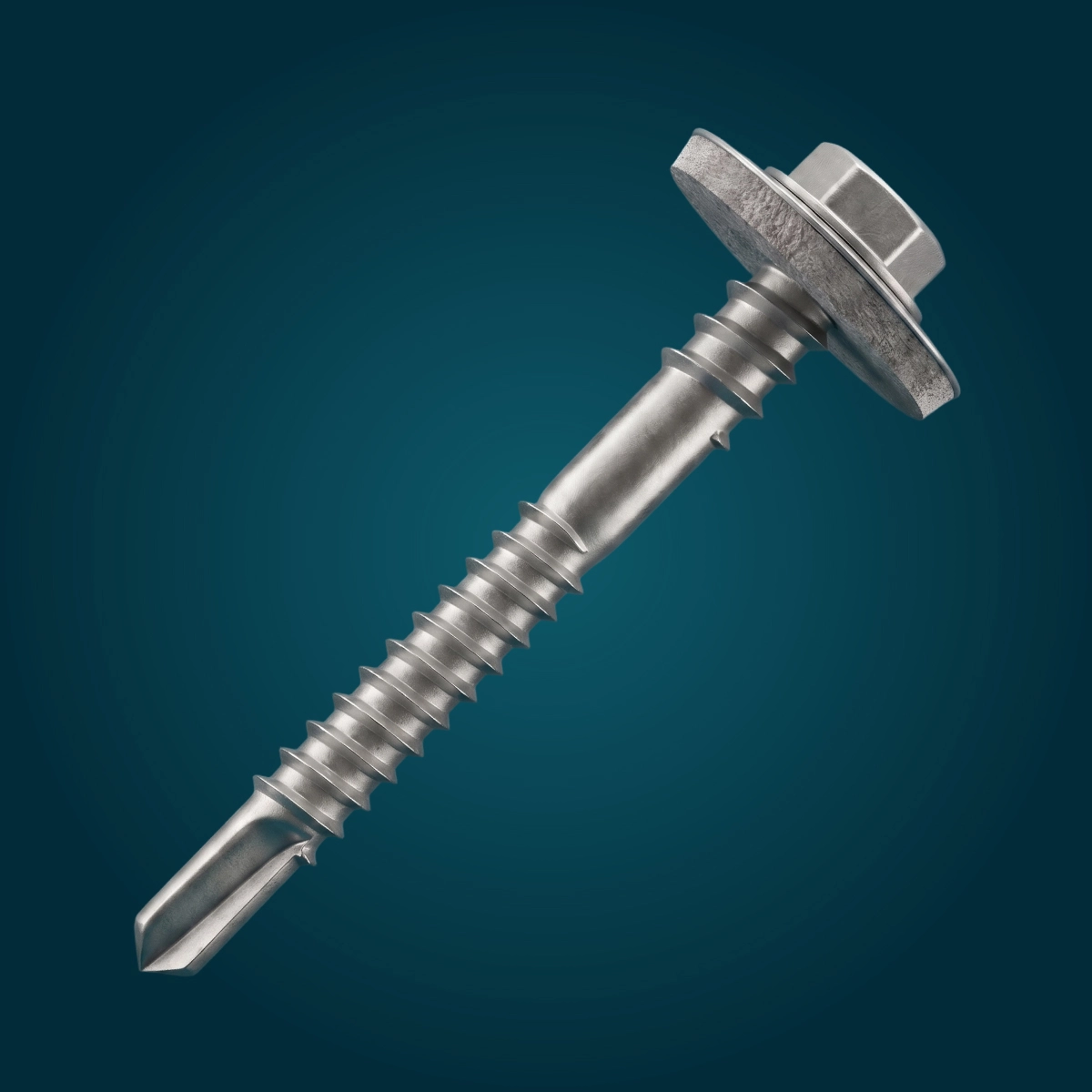

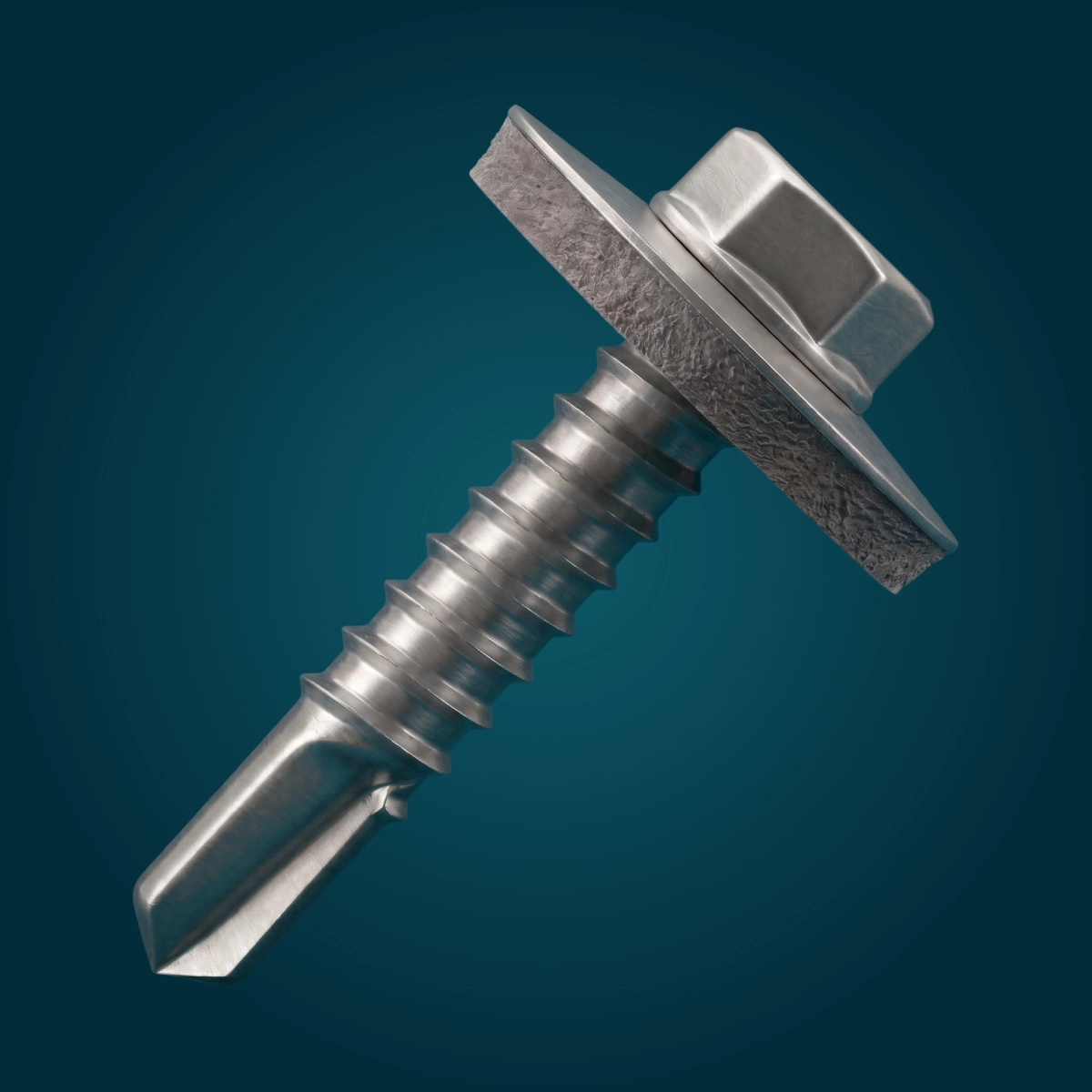

BIFIX® 4.8XL 1P EcoZinBIFIX-CS-48-1PBIFIX® 4.8XL 1P EcoZinCarbon steel self-drilling stitching screw with hex washer head and bonded EPDM sealing w…View product BIFIX® 5.5XL & 6.3XL 3P EcoZinBIFIX-CS-55-63-3PBIFIX® 5.5XL & 6.3XL 3P EcoZinCarbon steel self-drilling roofing screw with hex washer head and bonded EPDM sealing was…View product BIFIX® 5.5XL & 6.3XL High Thread 3P EcoZinBIFIX-CS-HT-3PBIFIX® 5.5XL & 6.3XL High Thread 3P EcoZinCarbon steel self-drilling sandwich panel screw with high thread profile, hex washer head…View product
